PORTABLE HYDRAULIC INSTRUMENTS FOR PRESSURE TESTING

Pressure test Kits

Test kits are made for connecting any hydraulic equipment with standard threaded test couplings M 16×2 and fitted micro-hose.
Pressure gauges are fitted with a Bourdon spring and liquid filled (glycerine 99.7%), according to DIN 16005. 100 mm accuracy 1%. 63 mm accuracy 1.6%.
Each kit is supplied with a fitted female 16×2 2 metre micro hose and gauges
chosen from these ranges, in bar:
– 1…0 – 0,6 – 1 – 1,6 – 2,5 – 4 – 6 – 10 – 16 – 25 – 40 – 60 – 100 – 160 – 250 – 315 – 400 – 600 – 1000.

Kit portatile prova pressione componibile che include 2 manometri diam. 63 mm e/o 100 mm, adattatori e miniprese - Dimensioni 385x255x90 mm

TYPES:

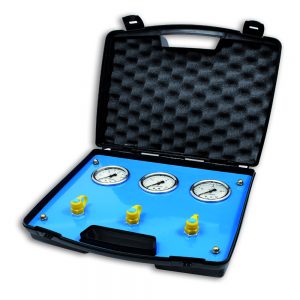

: 3 pressure gauges stainless steel housing diam. 63 mm dim. 320x280xh119 mm

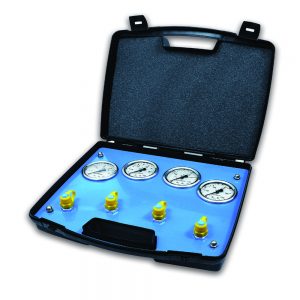

: 4 pressure gauges stainless steel housing diam. 63 mm dim. 320x280xh119 mm

: 5 pressure gauges brass housing 2 diam. 100 mm 3 diam. 63 mm dim. 430x320xh120 mm

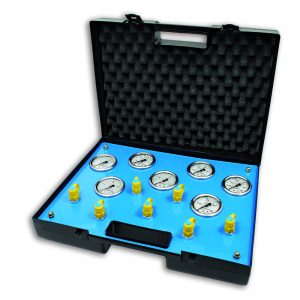

: 7 pressure gauges stainless steel housing diam. 63 mm dim. 430x320xh120 mm

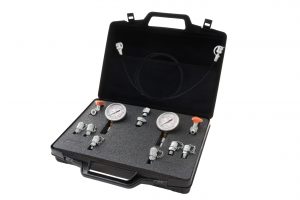

: 2 pressure gauges stainless steel housing (d.63 mm and/or 100 mm) complete with adapters and test couplings 385x255x90 mm. It can be customised
