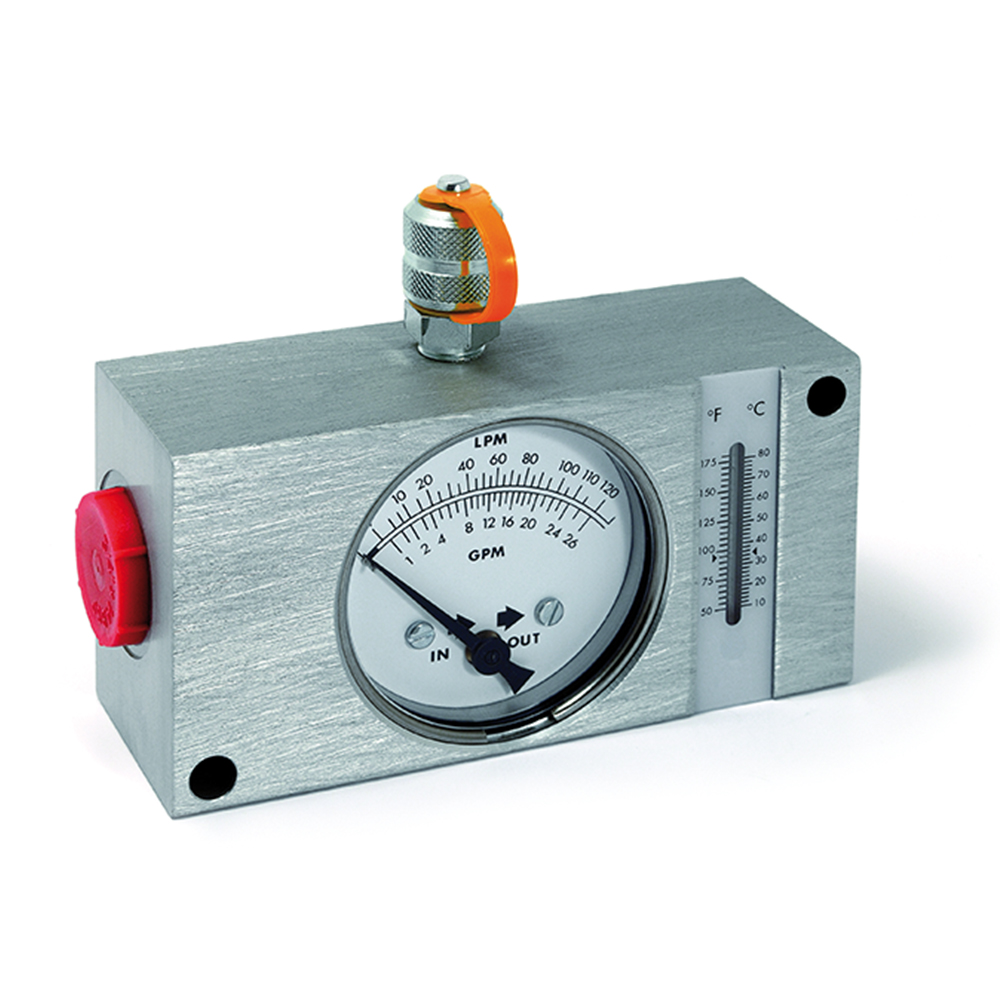

IN-LINE FLOW INDICATORS

Flow indicators are designed for continuous monitoring or intermittent use commissioning.
The large clear 63 mm diameter dial ensure that quick checks can be made to determine pump performance and setting of flow control valves.
They can be used on mobile and industrial hydraulic circuits. Also lubrication and coolant system using oil/water.
These direct acting flow indicators can be installed in hazardous areas or on applications where no power is available.
Moreover it is possible to check the temperature by the thermometer and the pression by the predisposition for the connection with a 1/4″ G test coupling.

Gamma Features
16 LPM
30 LPM
60 LPM
120 LPM
180 LPM
Pressure 420 bar (6000 psi)
Accuracy within 4% fsd
200 LPM
300 LPM
400 LPM
Pressure 280 bar (4000 psi)
Accuracy within 4% fsd
